H01-05-556
Cat. No	제품메뉴얼	구매규격서	인증서	MSDS	ETC.

•

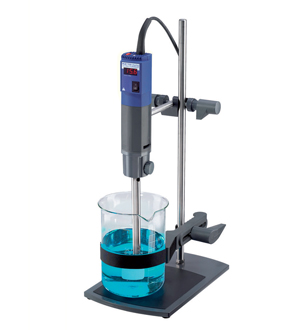

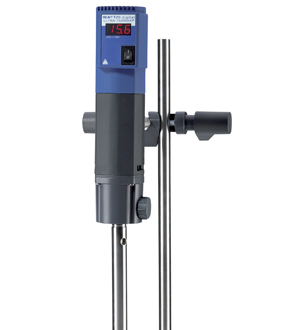

  Cat. No.	Model	Type	사용가능용량	속도표시
  H01-05-130	3561000	T18	1 ~ 1500 ml	Scale (6단)
  H01-05-140	3565000	T25 digital	1 ~ 2000 ml	Digital
  H01-05-145	3565000P	T25 package	1 ~ 2000 ml	Digital



  Cat. No.	T18	T25 Digital
  Motor Rating in/out	500W /300W	500W / 300W
  Volume Range	1 ~ 1500 ml (H2O)	1 ~ 2000 ml (H2O)
  Max, Viscosity	5000 mPas
  Speed Range	3500 ~ 24000 rpm	3400 ~ 24000 rpm
  Speed 조절	6 단 Stepless	Steless
  Speed display	Scale	Digital
  Extension Arm	od13 x L175 mm
  Size	w65 x d80 x h240 mm

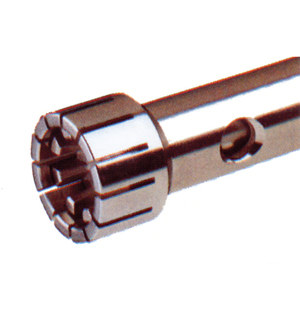

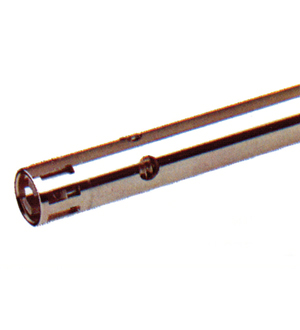

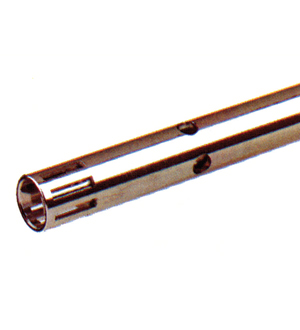

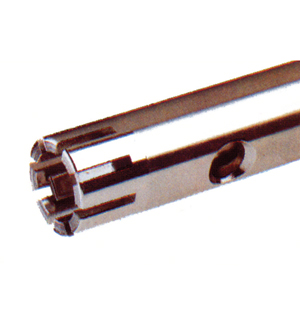

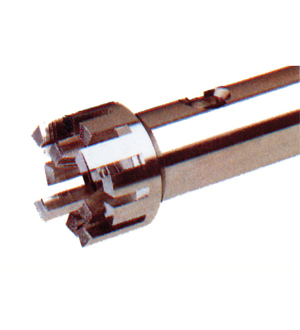

  Tool/Dispersing Element

  적용 Model	T18		T25 digital
  Cat. No.	H01-05-532	H01-05-538	H01-05-544	H01-05-550	H01-05-556	H01-05-562	H01-05-568
  Model	S18N-10G	S18N-19G	S25N-8G	S25N-10G	S25N-18G	S25N-25G	S25N-25F
  Working Range	1 ~ 100 ml	10 ~ 1500 ml	1 ~ 50	1 ~ 100	10 ~ 1500	50 ~ 2000	100 ~ 2000
  Stator Diameter	10 mm	19 mm	8 mm	10 mm	18 mm	25 mm	25 mm
  Roter Diameter	7.5 mm	12.7 mm	6.1 mm	7.5 mm	12.7 mm	17 mm	18 mm
  Immersion min/max	25/70 mm	35 /170 mm	27/85 mm	22/85 mm	40/165 mm	40/165 mm	40/165 mm
  Shaft length	108 mm	204 mm	108 mm	105 mm	194 mm	194 mm	194 mm
  Ultimate Suspension	10-50 um		1-50 um			15-50 um	5-25 um
  Ultimate Emulsion	1-10 um		1-10 um				1-5 um

  * 재질 : AISI 316L 과 PTFE bearing, 내열온도 : 최대 180℃

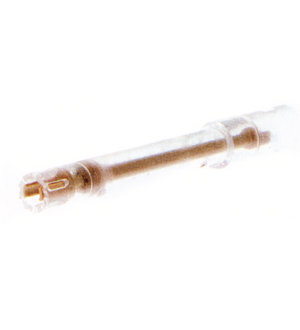

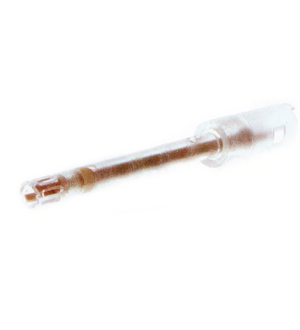

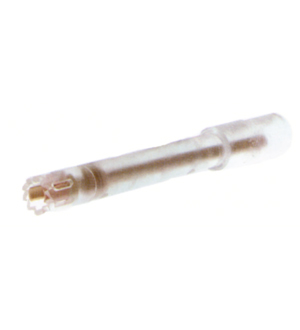

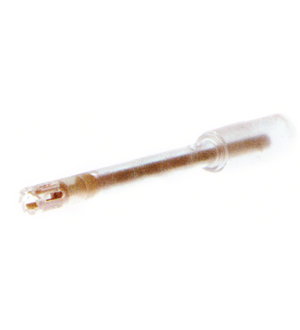

  Plastic Dispersing Element for T18, T25 Digital

  적용 Model	T18		T25
  Cat. No.	H01-05-841	H01-05-853	H01-05-865	H01-05-877
  Model	S18D-10G-10	S18D-14G-10	S25D-10G-10	S25D-14G-10
  Package	10 ea/pk	10 ea/pk	10 ea/pk	10 ea/pk
  Working Range	10 ~ 100 ml	10 ~ 500 ml	10 ~ 100 ml	10 ~ 500 ml
  Stator Diameter	10 mm	14 mm	10 mm	14 mm
  Roter Diameter	6.75 mm	9.5 mm	6.75 mm	9.5 mm
  Immersion min/max	18/85 mm		18/85 mm
  Shaft length	150 mm		150 mm
  Max. Temperature	100℃, Autoclavable		100℃, Autoclavable
  재질	Polycarbonate (PC) & Polyetheretherketon (PEEK)		Polycarbonate (PC) & Polyetheretherketon (PEEK)
